QT3S Series Master Controller
Category：
QT3S Industial Joystick is mainly is used in various secondary circuitswith AC 50Hz(60Hz), rated voltage of 380V(440V) and below, and canrealize motor commutation,speed regulation, braking, linkage,transfer,etc.,Can also be mounted on the console surface or portable control box.Also has been widely used in all kinds of mechanical equipment in port,shipping, railway, metallurgy, mining, power,construction,manufacturing.
多行文本内容元素
富文本内容绑定数据后可解析HTML语言内容
Details
| Data | |||
| Operating Temperature | -20-60℃ | ||
| Handle Operating Force | ≤20N | ||
| Mechanical Life | 300w /movement | ||
| Contact Paremeter | Power : AC | ||
| Rated Current : 10A | |||
| Rated Voltage : 380V(440V) | |||
| Electrical Life : 1 million | |||
| Maximum Direction Of Operation | 8 | ||
| Maximum Number Of Axis | 2 | ||
| Maximum Steps | 5 | ||
| Maximum Number Of Contacts | 11 | ||

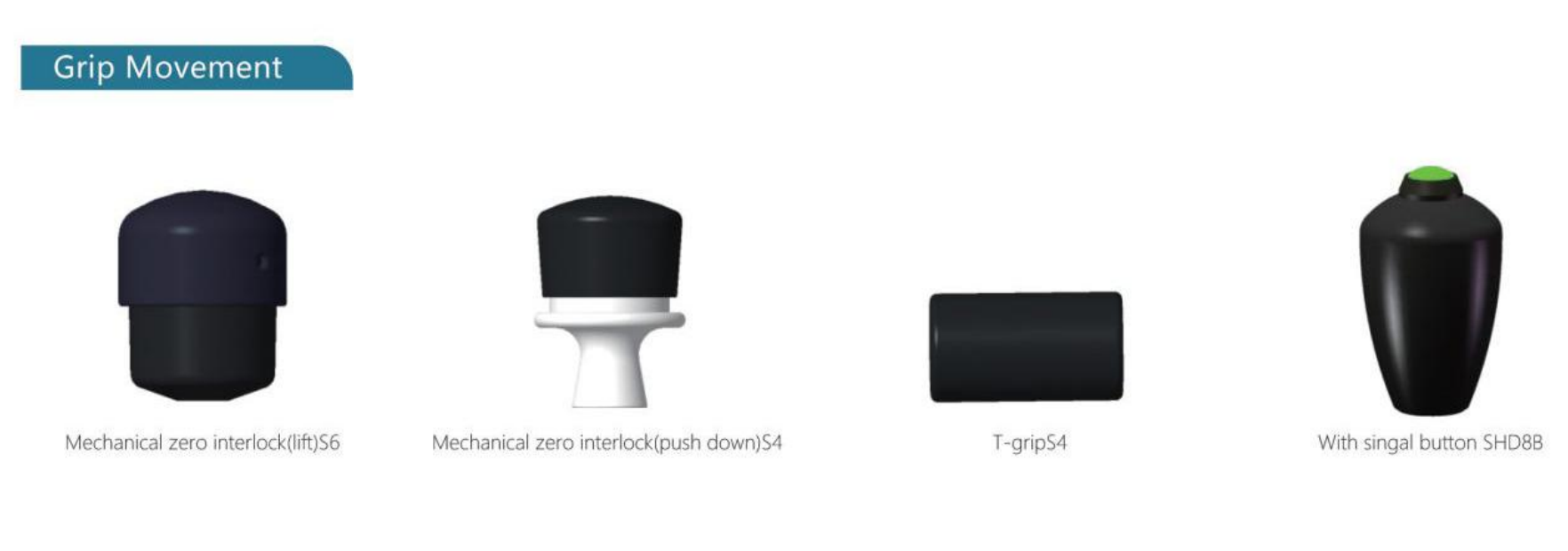

| Grip | Mechanical zero interlock | ||
| Maximum Potentiometer | 2 | ||
| Fix Operating Frequency | 1200 /H | ||
